Video

Plays a video file as a texture on a quad. Supports green-screen keying (isGreenScreen, backgroundColor, similarity, smoothness, spill). The video element, texture, and material are runtime-only and re-created when the project loads.

Managed by: VideoSystem

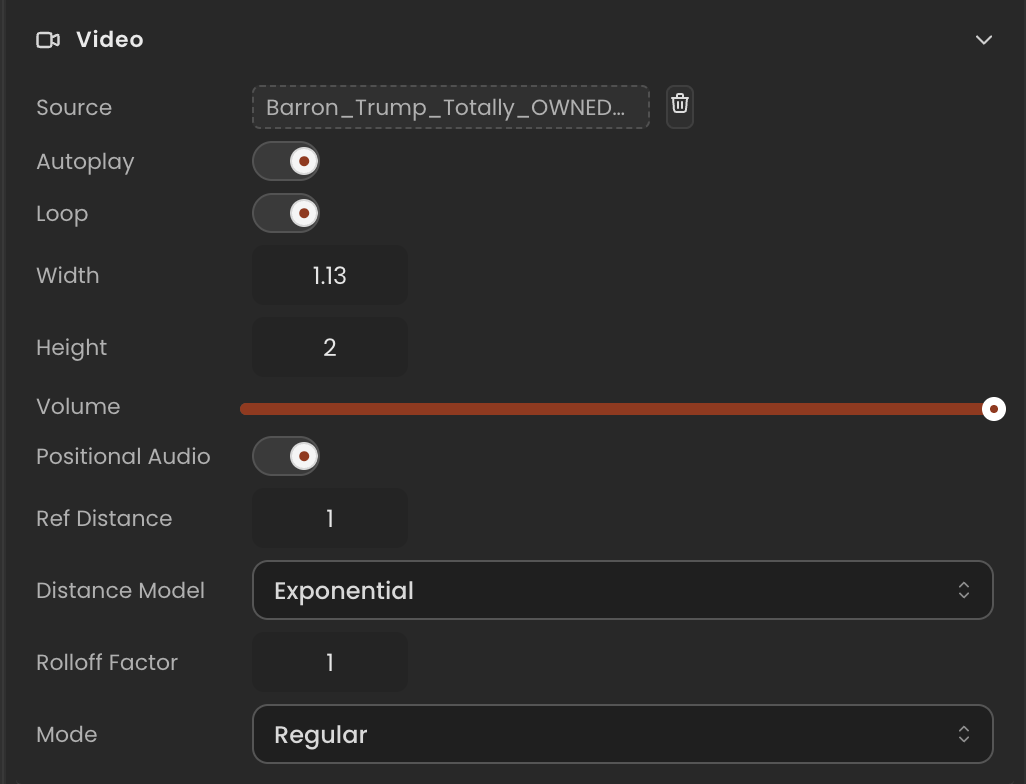

Editor inspector

Properties

Property	Type	Description
path	string	Source URL or localasset:// path of the video file.
options	typeof DEFAULT_VIDEO_OPTIONS	Playback + green-screen options.
object	THREE.Object3D | null	Live three.js object hosting the video quad. null until built.
videoElement	HTMLVideoElement | null	Underlying HTML video element. null until built.
texture	THREE.VideoTexture | null	Three.js texture sampling the video element. null until built.
material	THREE.Material | null	Material rendering the video texture (with green-screen shader when enabled). null until built.
audioNode	THREE.Audio<GainNode> | THREE.PositionalAudio | null	THREE.js audio node connected to this video's audio stream via setMediaElementSource. Present only in preview when the camera listener is available. null in editor mode.
isPlaying	boolean	Whether the video should be playing. Managed by VideoSystem in preview. Non-enumerable — not persisted to snapshots or save data. Set via play / stop.
isPaused	boolean	Whether the video is paused mid-playback (position is preserved). Non-enumerable — not persisted to snapshots or save data. Set via pause / play / stop.

API reference

• Class: VideoComponent
• Source: core/components/Video.ts

Scripting examples

Component access patterns

Use this.getComponent(X) to access a component on the entity this script is attached to. Use this.world.getEntityByName to find another entity by name, then this.world.getComponent to read its component:

// Component on the entity this script is on
const video = this.getComponent(VideoComponent);

// Component on another entity, found by its scene name
const other = this.world.getEntityByName("Screen");
if (other) {
  const video = this.world.getComponent(other.entityId, VideoComponent);
}

Play / pause on key press

Toggle video playback when the player presses Space.

import { Behaviour, VideoComponent, KeyboardKeys } from "@relu-interactives/spatial-ecs";

export default class VideoController extends Behaviour {
  protected onUpdate() {
    const video = this.getComponent(VideoComponent);
    if (!video) return;

    if (this.world.getKeyDown(KeyboardKeys.Space)) {
      if (video.isPlaying) {
        video.pause();
      } else {
        video.play();
      }
    }
  }
}

Inspector-driven volume and loop

Expose volume and loop settings as inspector fields so they can be tuned without re-entering the code.

import { Behaviour, VideoComponent } from "@relu-interactives/spatial-ecs";
import type { FloatInput, BooleanInput } from "@relu-interactives/spatial-ecs";

export default class VideoSettings extends Behaviour {
  data = {
    volume: 1 as FloatInput,
    loop: true as BooleanInput,
  };

  protected onUpdate() {
    const video = this.getComponent(VideoComponent);
    if (!video) return;
    video.options.volume = this.data.volume;
    video.options.loop = this.data.loop;
  }
}

Via ComponentInput in the inspector

You can also pick this component from the inspector using a ComponentInput field. Assign any entity in the inspector and the field resolves to the live VideoComponent instance at runtime.

import {
  Behaviour,
  VideoComponent,
  type ComponentInput,
} from "@relu-interactives/spatial-ecs";

export default class Example extends Behaviour {
  data = {
    targetVideo: {
      type: "component",
      value: null,
    } as unknown as ComponentInput,
  };

  protected onUpdate() {
    const video = this.data.targetVideo.value as VideoComponent | null;
    if (!video) return;
    // Use the live component instance.
  }
}

Via EntityInput in the inspector

Alternatively, pick an entity from the inspector using an EntityInput field and then read the component off that entity via world.getComponent:

import {
  Behaviour,
  VideoComponent,
  type EntityInput,
  type WorldEntityView,
} from "@relu-interactives/spatial-ecs";

export default class Example extends Behaviour {
  data = {
    targetEntity: { type: "entity", value: null } as unknown as EntityInput,
  };

  protected onUpdate() {
    const entity = this.data.targetEntity.value as WorldEntityView | null;
    if (!entity) return;

    const video = this.world.getComponent(
      entity.entityId,
      VideoComponent,
    ) as VideoComponent | null;
    if (!video) return;
    // Use the component on the picked entity.
  }
}

Playback methods

Use video.play(), video.pause(), and video.stop() to control playback. These update isPlaying / isPaused so the VideoSystem applies the correct HTML video element call in preview.
