Transform

Position, rotation, and scale of an entity in its parent's local space. Rotation is stored in radians (Euler XYZ). The editor inspector converts to/from degrees for display — do not store degrees in this component. Mutations should go through the setPosition / setRotation / setScale helpers so dependent systems pick up the change.

Managed by: TransformSyncSystem

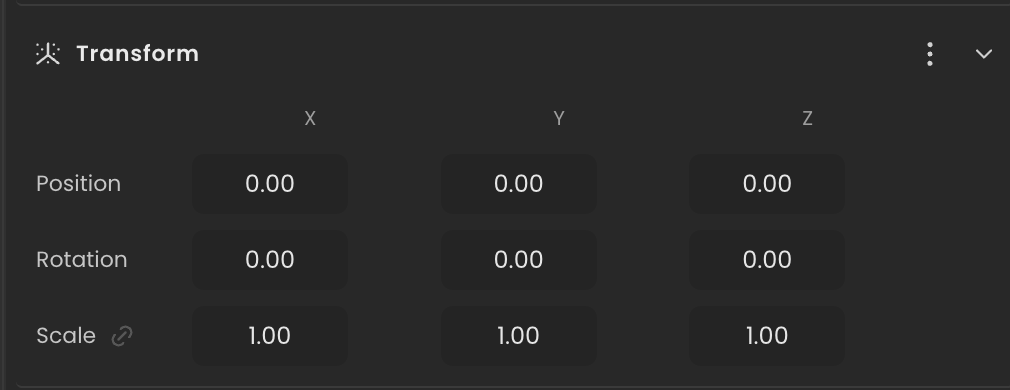

Editor inspector

Properties

Property	Type	Description
position	Vec3	Local position relative to the parent (or world if no parent).
rotation	Vec3	Local rotation as Euler XYZ in radians.
scale	Vec3	Local scale factors per axis (1 = identity).

API reference

• Class: TransformComponent
• Source: core/components/Transform.ts

Scripting examples

Component access patterns

Use this.getComponent(X) to access a component on the entity this script is attached to. Use this.world.getEntityByName to find another entity by name, then this.world.getComponent to read its component:

// Component on the entity this script is on
const transform = this.getComponent(TransformComponent);

// Component on another entity, found by its scene name
const other = this.world.getEntityByName("Target");
if (other) {
  const transform = this.world.getComponent(other.entityId, TransformComponent);
}

For TransformComponent specifically, this.transform is a built-in shorthand — the same component, no lookup needed.

Continuous rotation

Rotate an entity on any combination of axes at inspector-controlled speeds.

import { Behaviour } from "@relu-interactives/spatial-ecs";
import type { FloatInput } from "@relu-interactives/spatial-ecs";

export default class Rotator extends Behaviour {
  data = {
    speedX: 0 as FloatInput,
    speedY: 1 as FloatInput,
    speedZ: 0 as FloatInput,
  };

  protected onUpdate() {
    this.transform.rotation.x += this.data.speedX * this.deltaTime;
    this.transform.rotation.y += this.data.speedY * this.deltaTime;
    this.transform.rotation.z += this.data.speedZ * this.deltaTime;
  }
}

Sine-wave bobbing

Animate the entity's Y position with a configurable sine wave, useful for floating objects or UI indicators.

import { Behaviour } from "@relu-interactives/spatial-ecs";
import type { FloatInput } from "@relu-interactives/spatial-ecs";

export default class Bobber extends Behaviour {
  data = {
    amplitude: 0.5 as FloatInput,
    frequency: 1 as FloatInput,
  };

  private elapsed = 0;
  private originY = 0;

  protected init() {
    this.originY = this.transform.position.y;
  }

  protected onUpdate() {
    this.elapsed += this.deltaTime;
    this.transform.position.y =
      this.originY + Math.sin(this.elapsed * this.data.frequency) * this.data.amplitude;
  }
}

Via ComponentInput in the inspector

You can also pick this component from the inspector using a ComponentInput field. Assign any entity in the inspector and the field resolves to the live TransformComponent instance at runtime.

import {
  Behaviour,
  type ComponentInput,
} from "@relu-interactives/spatial-ecs";
import {
  TransformComponent,
} from "@relu-interactives/spatial-ecs/components";

export default class Example extends Behaviour {
  data = {
    targetTransform: {
      type: "component",
      value: null,
    } as unknown as ComponentInput,
  };

  protected onUpdate() {
    const transform = this.data.targetTransform.value as TransformComponent | null;
    if (!transform) return;
    // Use the live component instance.
  }
}

Via EntityInput in the inspector

Alternatively, pick an entity from the inspector using an EntityInput field and then read the component off that entity via world.getComponent:

import {
  Behaviour,
  type EntityInput,
  type WorldEntityView,
} from "@relu-interactives/spatial-ecs";
import {
  TransformComponent,
} from "@relu-interactives/spatial-ecs/components";

export default class Example extends Behaviour {
  data = {
    targetEntity: { type: "entity", value: null } as unknown as EntityInput,
  };

  protected onUpdate() {
    const entity = this.data.targetEntity.value as WorldEntityView | null;
    if (!entity) return;

    const transform = this.world.getComponent(
      entity.entityId,
      TransformComponent,
    ) as TransformComponent | null;
    if (!transform) return;
    // Use the component on the picked entity.
  }
}

Rotation units

Rotation is stored and mutated in radians. The editor inspector displays degrees — convert with Math.PI / 180 if you need to enter degree values in code.
