Renders a 2D image as a textured quad in the scene. Width/height are in world units. Texture loading is handled by the image system, which populates ImageComponent.texture and ImageComponent.object asynchronously.

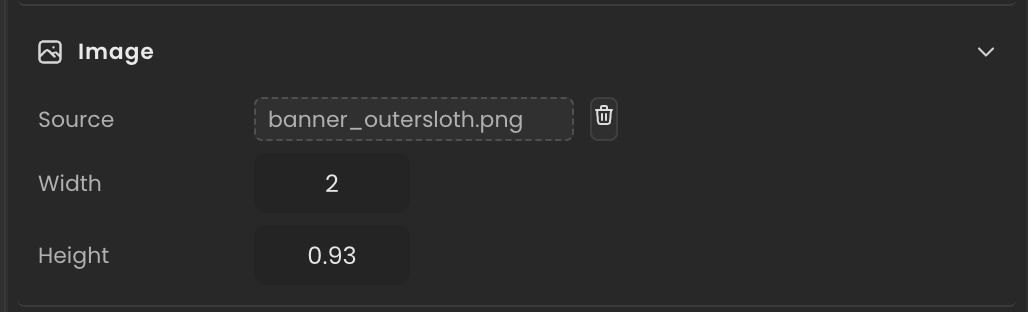

Editor inspector

Properties

Property	Type	Description
path	string	Source URL or localasset:// path of the image file.
width	number	Width of the rendered quad in world units.
height	number	Height of the rendered quad in world units.
texture	THREE.Texture | null	Loaded texture, populated asynchronously by the image system. null until loaded.
object	THREE.Object3D | null	Live three.js object representing the textured quad. null until built.

API reference

• Class: ImageComponent
• Source: core/components/Image.ts

Scripting examples

Component access patterns

Use this.getComponent(X) to access a component on the entity this script is attached to. Use this.world.getEntityByName to find another entity by name, then this.world.getComponent to read its component:

// Component on the entity this script is on
const image = this.getComponent(ImageComponent);

// Component on another entity, found by its scene name
const other = this.world.getEntityByName("Banner");
if (other) {
  const image = this.world.getComponent(other.entityId, ImageComponent);
}

Smooth resize toward a target size

Lerp the image quad's dimensions toward inspector-defined target values, useful for animated UI reveals or zoom effects.

import { Behaviour, ImageComponent } from "@relu-interactives/spatial-ecs";
import type { FloatInput } from "@relu-interactives/spatial-ecs";

export default class ImageResizer extends Behaviour {
  data = {
    targetWidth: 2 as FloatInput,
    targetHeight: 2 as FloatInput,
    speed: 3 as FloatInput,
  };

  protected onUpdate() {
    const image = this.getComponent(ImageComponent);
    if (!image) return;

    const k = this.data.speed * this.deltaTime;
    image.width  += (this.data.targetWidth  - image.width)  * k;
    image.height += (this.data.targetHeight - image.height) * k;
  }
}

Show or hide based on a flag

Drive the quad's visibility from the inspector or from game logic via Object3DRef.

import { Behaviour, ImageComponent, Object3DRef } from "@relu-interactives/spatial-ecs";
import type { BooleanInput } from "@relu-interactives/spatial-ecs";

export default class ImageVisibility extends Behaviour {
  data = {
    visible: true as BooleanInput,
  };

  protected onUpdate() {
    const image = this.getComponent(ImageComponent);
    if (!image?.object) return; // wait for texture load

    const ref = this.getComponent(Object3DRef);
    if (ref) ref.visibility = this.data.visible;
  }
}

Via ComponentInput in the inspector

You can also pick this component from the inspector using a ComponentInput field. Assign any entity in the inspector and the field resolves to the live ImageComponent instance at runtime.

import {
  Behaviour,
  ImageComponent,
  type ComponentInput,
} from "@relu-interactives/spatial-ecs";

export default class Example extends Behaviour {
  data = {
    targetImage: {
      type: "component",
      value: null,
    } as unknown as ComponentInput,
  };

  protected onUpdate() {
    const image = this.data.targetImage.value as ImageComponent | null;
    if (!image) return;
    // Use the live component instance.
  }
}

Via EntityInput in the inspector

Alternatively, pick an entity from the inspector using an EntityInput field and then read the component off that entity via world.getComponent:

import {
  Behaviour,
  ImageComponent,
  type EntityInput,
  type WorldEntityView,
} from "@relu-interactives/spatial-ecs";

export default class Example extends Behaviour {
  data = {
    targetEntity: { type: "entity", value: null } as unknown as EntityInput,
  };

  protected onUpdate() {
    const entity = this.data.targetEntity.value as WorldEntityView | null;
    if (!entity) return;

    const image = this.world.getComponent(
      entity.entityId,
      ImageComponent,
    ) as ImageComponent | null;
    if (!image) return;
    // Use the component on the picked entity.
  }
}
